Capabilities of the Sensor

The following table summarizes the specifications of the various NUI-enabled sensors you work with as a Xbox One developer.

Feature	Xbox 360 Kinect Sensor	Beta and Final Sensors
Camera’s field of view	57.5-degree vertical by 43.5-degree horizontal	70.0-degree vertical by 60.0-degree horizontal, with no tilt motor
Color	640px by 480px, 16-bit YUV @ 15 FPS640px by 480px, 8-bit RGB @ 30 FPS	1080p 16-bit YUV @ 30 FPS in light levels greater than ~20 lux1080p 16-bit YUV @ 15 FPS in light levels less than ~20 lux (to increase exposure and brighten the scene)
Depth	320px by 240px, 16-bit @ 30 FPS with 0.8—4.0 meters of playable range	512px by 424px, 16-bit @ 30 FPS with 0.5—4.5 meters of playable range and 2 times better minimum object size
Active IR Stream	N/A	512px by 424px, 16-bit @ 30 FPS
Up Vector	Yes	Yes
Audio Input	4-element microphone array MEC	Improved audio pipeline

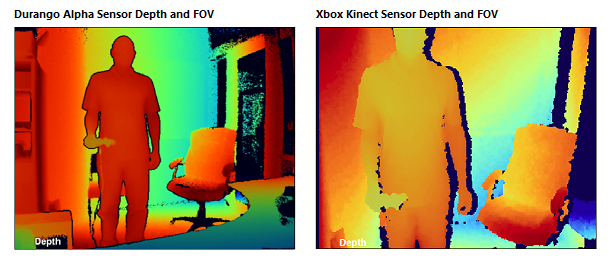

Compared to the Xbox 360 Kinect Sensor, the Xbox One sensor provides a field of view that is broader with no tilt motor and 3D depth information in higher fidelity, as shown in the following figure.

Resources

For a full discussion of the capabilities of the Kinect, see the Introduction to Kinect on Xbox One white paper. The full list of white papers is available at Xbox Game Developer: White Papers.
