Sandbox Survival Kit

Introduction

The Xbox One developer tools include multiple changes in how in-development titles communicate with Xbox services. Most importantly, all Xbox services accessed by the Xbox One Development Kit (dev kits) are in a unified production physical environment that provides content isolation. We have introduced a new concept, the sandbox, that essentially provides an entire private environment for development. This document explains what sandboxes are, why they exist, how they apply to publishers, and how they impact internal Xbox teams. The audience for this document is publishers who build Xbox One content and use sandboxes.

In this topic:

Executive summary

In Xbox One, there is only a single production environment where all prerelease (in-development and beta), certification, and retail content resides.

Content isolation is the way to ensure that there are no publisher content leaks in production. At its core, content isolation ensures that any principal user, device, or title that requests permission to access a resource—a title or a service—has been authorized to access the resource. With content isolation, partitions are divided into sandboxes where title or service data is stored. Said differently, authorization policies are defined within the scope of a sandbox.

Sandboxes are a way to partition data that is in production. With Xbox 360, PartnerNet and ProductionNet are two distinct environments. With Xbox One, a single production environment contains n distinct virtual environments where each virtual environment is called a sandbox. Because there is a single production environment for all content, sandboxes are actually unique virtual environments where data generated in one environment cannot cross over to another.

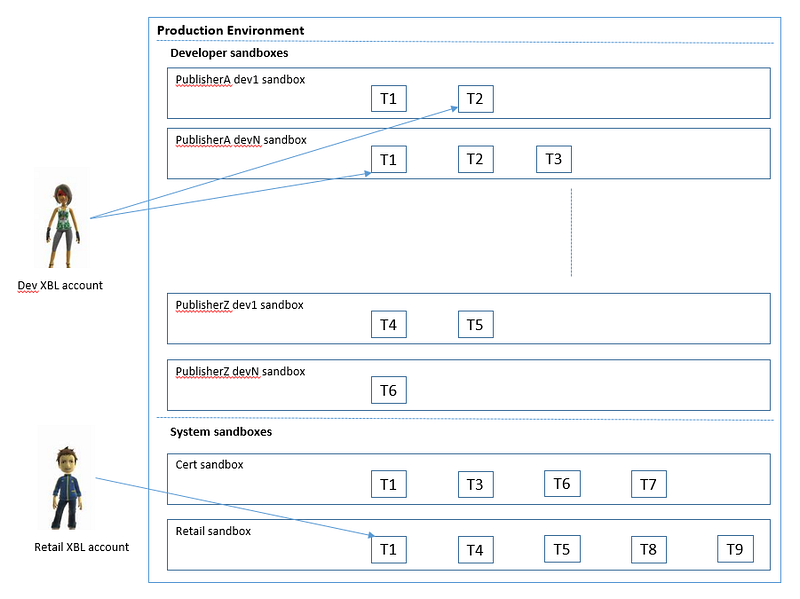

The following figure shows a single production environment in which publishers can create their private development sandboxes. Only authorized dev accounts or dev kits are permitted access to these sandboxes.

Figure 1.  Sandboxes in a production environment

Just as PublisherA has her development sandboxes, other publishers have their own development sandboxes. The same title ID may reside in different sandboxes but the data generated for the title ID is distinct across sandboxes.

There are two system sandboxes that can only be populated by Microsoft: CERT and RETAIL. As the names suggest, the CERT sandbox is for titles that are undergoing certification prior to release, while the RETAIL sandbox is the sandbox representing real dollars that is accessible by all retail users and devices. The data generated in the RETAIL sandbox exists for the life of Xbox One.

Whereas a title ID was formerly unique in Xbox Live, now a title ID plus a sandbox ID is unique. The same applies to product IDs and other ID spaces that were once treated as unique. They must now be paired with a sandbox ID. All data in Xbox One will be primarily partitioned by the sandbox ID throughout the system.

Initial setup for a title

A title is born in the Xbox Developer Portal (XDP). It is assigned a title ID and a product ID.

In this new world, a title or product on its own doesn’t mean anything to Xbox Live. Because we must support simultaneous retail and development use of a single title, we must support instancing of titles in order to make and maintain the necessary distinctions. An instance of a title resides in a sandbox and this is where sandboxes come in.

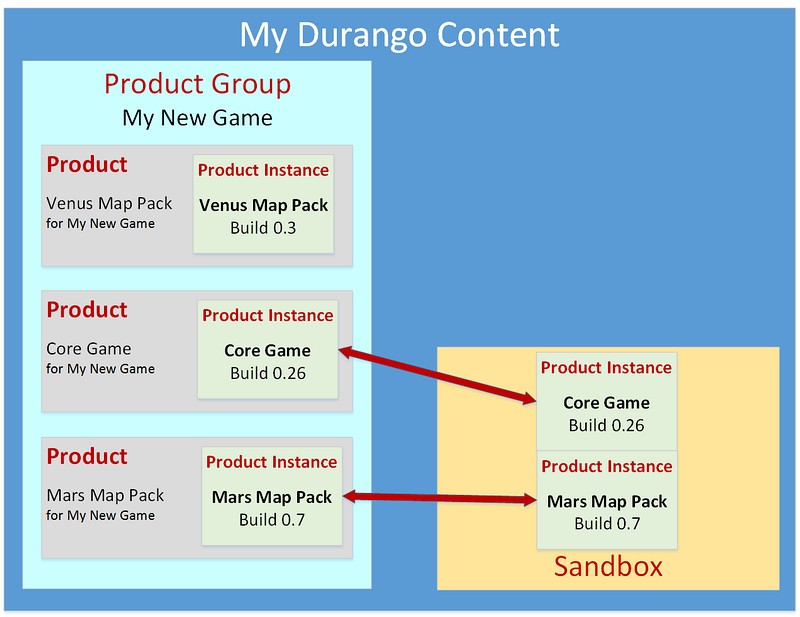

In order to create a title, a publisher creates a product group, specifies the genre for the product group, and then creates individual products within it. For more details, refer to the XDP documentation. The following diagram illustrates the relationships between a product group, a product, a product instance, and a sandbox.

Figure 2.  The relationships between a product group, a product, a product instance, and a sandbox

Product instances

A product instance is a projection of title, product, and configuration data in a specific sandbox. This data is described in the following three areas: service configuration, catalog metadata, and binaries.

Service configuration
  Service configuration definitions—events, stats, achievements, etc. The service configuration is defined at the product instance level.

Catalog metadata
  The metadata which lives in the Catalog, including sell text, art assets, availability/offer information, licensing data, and more.

Binary
A binary can be represented in either of two ways:

Getting the access right

There are two distinct types of access to your content in Xbox One:

Design-time access—access from a PC via the XDP tool—allows people working on your products to upload, organize, and work with content, configuration, and metadata, but does not allow them to run or play instances of your products.

Run-time access—access from an Xbox console—allows your developers, testers, reviewers, and eventually your customers to run and play product instances.

Note In order to be available for run-time access, a product instance must be placed in a sandbox. Once a build is placed in a sandbox, XDP users or devkit devices that have been granted access to that sandbox can run the instance. To do this, they log on to Xbox One via an Xbox console, using one of their dev accounts—special accounts that function as virtual users for run-time access.

When we are talking about sandboxes, we are typically talking about run-time access to content that runs on Xbox Live. In order to access a service in Xbox Live, a title ID is required. Once an appxmanifest contains a title ID, the console will send the title ID to Xbox Live. Xbox Live security services will not provide back a valid token unless the principal—device or user—has been given access to the title.

This validation process is the crux of content isolation. When seen at a very high level:

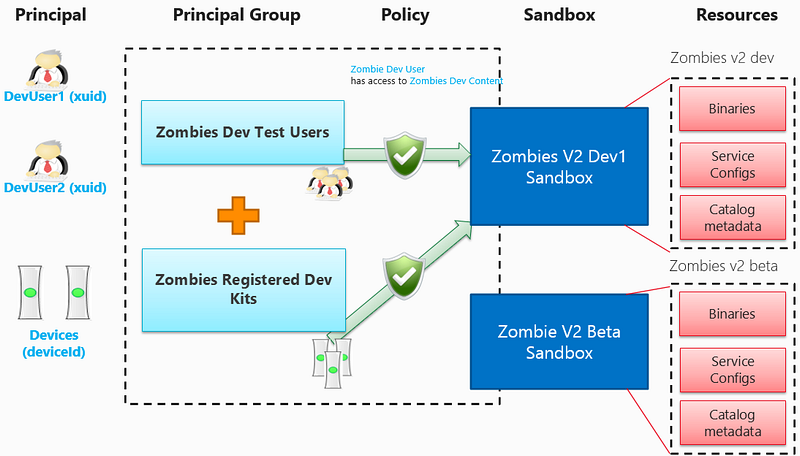

So, for a user or device to access a pre-release title in a sandbox, access must be granted through XDP first.

Figure 3.  A model for setting up access through XDP

The effectiveness of content isolation is based on the fact that your organization owns the following processes:

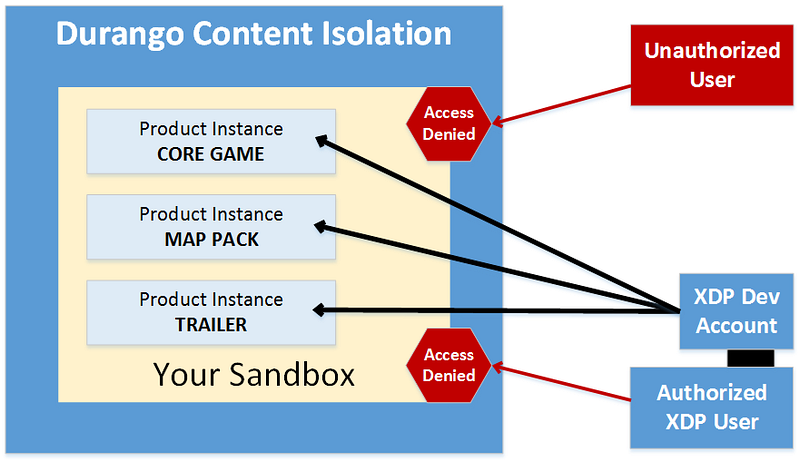

An example of this setup is illustrated in the figure below.

Figure 4.  An unauthorized user’s credentials fail to gain access to the sandbox, as do the ordinary credentials of an authorized XDP user account. Only the credentials of the dev account owned by the authorized XDP user account succeed in gaining run-time access to the sandbox, and to all of the product instances currently in it.

Dev accounts setup

Dev accounts in Xbox One are just standard Microsoft accounts (MSA) with special rules applied to them. They are used in Xbox Live for development. A dev account:

User group setup

A user group, the first kind of principal group, is a collection of XDP users. When XDP users are added to user groups, their dev accounts flow with these XDP users.

So when a user group is assigned to a sandbox, the dev accounts associated with the XDP users in that user group get added to appropriate principal groups and the principal groups get a policy setup with the primary resource set backing the sandbox.

Note The user groups that are created to access sandboxes are the same user groups that are used to prevent access to configuration data in XDP for product groups and products.

Device setup

A device also gets added to a principal group. A device can only be used as a dev kit if an entitlement is purchased through the Game Developer Store and the device is provisioned to be a dev kit. Once a device is provisioned as a dev kit, the device shows up in the list of devices that can be added to device groups.

Device group setup

A device group, the second kind of principal group, can also be given access to sandboxes. The setup is similar to the user group setup detailed above.

Sandboxes

What is a sandbox?

Stated simply, a sandbox is a way to partition data in production.

Why do we need sandboxes?

Just as users and devices access titles, titles access services. We introduce a concept of “title group” where sets of titles are granted access to service resources.

Because there is a single production environment for Xbox One for all pre-release and retail content, multiple instances—pre-release/retail—of a title must be prevented from operating on the same instances of resources.

What is in a sandbox?

A sandbox contains a product instance for every title that gets added to the sandbox.

What is a sandbox ID?

A sandbox ID is a partitioning unit of data for a title, product, or service config. Multiple titles can exist in the same sandbox, which is a prerequisite for them to share any service config data.

A sandbox ID (case sensitive) is a string in the following format: <PublisherMoniker>.n. An example sandbox ID, XLDP.5, is explained below:

When the title data moves through services, Xbox services use the sandbox ID to uniquely identify the “environment” for the data that is generated.

What data is sandboxed?

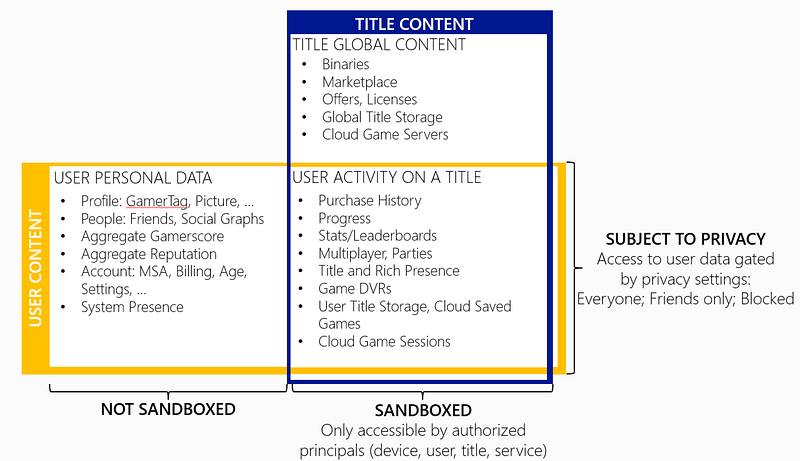

The diagram below shows what user and title data is sandboxed.

Global override sandbox

A developer sets the sandbox ID on her dev kit and thus sets the sandbox that the dev kit runs in; this is also known as the global override sandbox. Thus, all requests made to Xbox Live services—for example, achievements, matchmaking, licensing, EDS, etc.—from the titles (shell apps and regular apps-in the dev kit are made in that sandbox.

The global override sandbox also implies that only the content ingested in the global override sandbox is visible when being browsed.

Types of sandboxes

There are two different categories of sandboxes. These categories are defined as follows:

CERT sandbox

When a title is ready for general availability, it needs to go through certification first. The CERT sandbox is a Microsoft-controlled sandbox that only individuals in certification have access to. Publishers can see what content they own is going through certification.

Any product instances that fail while in certification can be brought back to a development sandbox to be debugged and fixed by the publishers using XDP.

RETAIL sandbox

The RETAIL sandbox is the final destination for all content that is created for Xbox One.

After a title passes certification, it is added to the RETAIL sandbox. Only green signed content is permitted to run in the RETAIL sandbox. This has an important implication that publisher-driven betas are also done in the RETAIL sandbox. Data generated in the RETAIL sandbox represents real customer production data.

Note that access to content is the RETAIL sandbox is still controllable through content isolation.

For example, publisher-driven betas are run in the RETAIL sandbox, where the publisher chooses which principal groups get to access publisher-defined beta resource set titles. The service data generated by the beta titles is real prod data and continues to exist once the title goes to general availability.

Cross-sandbox data interaction

By definition, a sandbox is a container that restricts data sharing. Thus, cross-sandbox data interaction is not possible.

Organizing your sandboxes

This section provides an example of how a publisher can organize sandboxes. A publisher needs to understand how to use sandboxes to organize data.

Note The examples below only show run-time access management with content isolation.

Scenario 1: Two titles, one sandbox

The basic structure for a publisher could be:

In this instance, the publisher just needs a single sandbox for all pre-release content.

The diagram below shows a user group. The publisher may choose to use a device group instead of a user group, if deemed easier. Also, this user group has run-time and design-time access to sandbox XLDP.1 and the titles in this sandbox.

Scenario 2: One title, different teams

In this model, the requirements are:

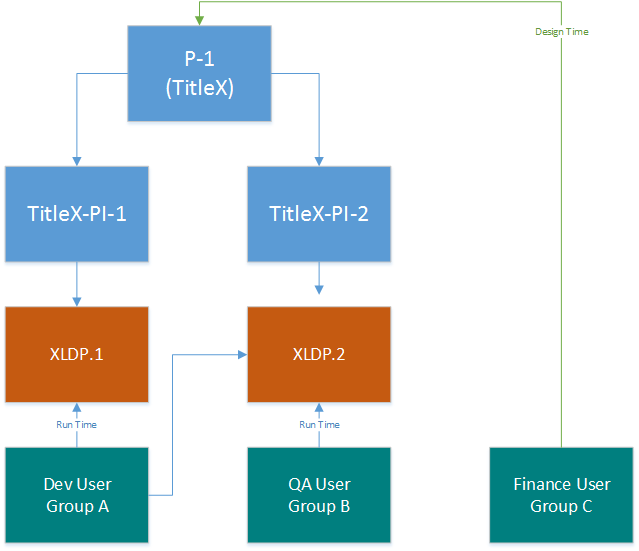

The figure below shows that TitleX has two product instances: PI-1 and PI-2. A product instance has to be in a sandbox and two product instances of the same title cannot be in the same sandbox. Thus, TitleX-PI-1 is in sandbox XLDP.1 and TitleX-PI-2 is in sandbox XLDP.2.

The dev user group has access to both sandboxes, whereas the QA user group has access to only sandbox XLDP.2.

Also, the finance user (Group C) has design-time access to TitleX. Because the finance user group will not typically do any run-time debugging of a title, they are separated out.

Note Irrespective of the organization, an XDP user can belong in more than one user group.

Scenario 3: Two titles, completely separate

In this example, the requirements change a bit:

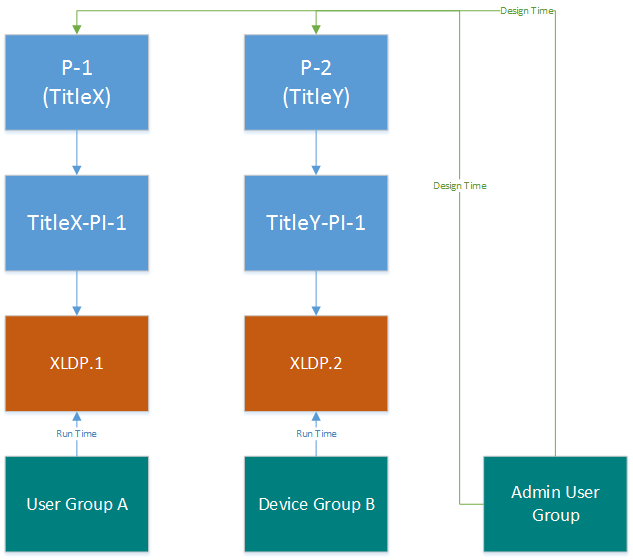

In this model, the publisher has chosen to keep both titles completely separated and thus assigned these two titles in two different sandboxes. The publisher has also chosen to create a separate admin user group and assigned access to the two products.

Scenario 4: Any way you like it

Due to the number of connections, and for conciseness, we have chosen to show only the sandbox run-time connections. Nothing prevents you from adding other design-time access permissions as well.

In this example, the requirements are:

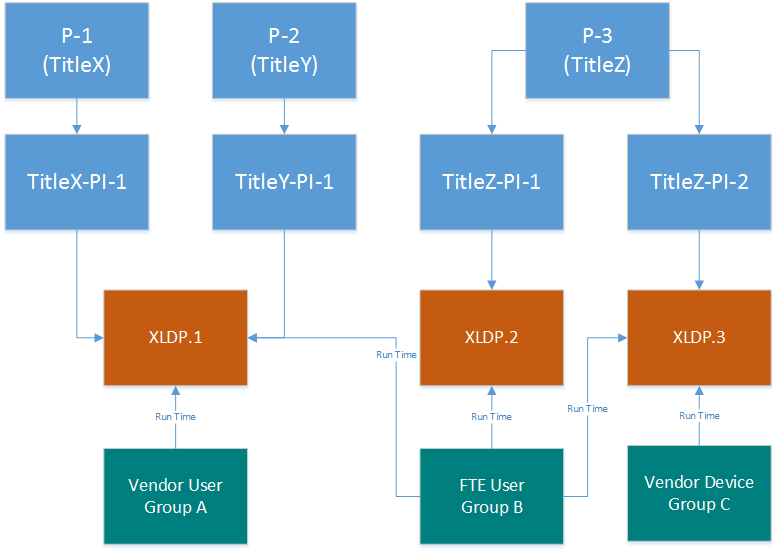

In order to model this requirement, a structure such as the one below can be adopted.

The model followed below is:


Summary

Xbox One development provides tremendous opportunity to publishers to test in production with production-quality services and production MSA developer accounts. The increase in functionality and flexibility requires new configuration steps in XDP to create title data and manage access to the titles while in development and in general availability.

Sandboxes are a way to partition data in production. Because there is a single production environment for all content, sandboxes act as “virtual environments” where data generated in one environment does not cross over to the other.
