Xbox One X Retail Console Hardware Specs

This section provides a high-level list of Xbox One X console specifications, as well as a comparison to the Xbox One and Xbox One S consoles.

High level Xbox One X Console Specs

• x64 architecture
• 8 CPU cores running at 2.30GHz, 4MB L2 cache
• GPU with 40 compute unit (CUs) running at 1.172GHz, giving 6.0 TFLOPs
• Up to 9 GB of GDDR5 title addressable memory with a peak bandwidth of 326GB/s (console has 12GB in total)
• 1 TB hard drive with average of 60MB/s I/O read performance
• 4K UHD Blu-ray Disc drive
• HDMI 2.0b out (2160P @ 60hz, HDR10), variable refresh rate will be supported in a future release
• HDMI 1.4b in
• Dolby Digital 5.1, DTS 5.1, PCM 2.0/5.1/7.1, HDMI and S/PDIF out
• Dolby Atmos for Home Theater, Dolby Atmos for Headphones
• 802.11ac wireless
• 802.3 10/100/1000 ethernet
• (3) USB 3.0 ports
• Data move engines, Image, video, and audio codecs, Kinect multichannel echo cancellation (MEC) hardware, cryptography engines for encryption and decryption, and hashing

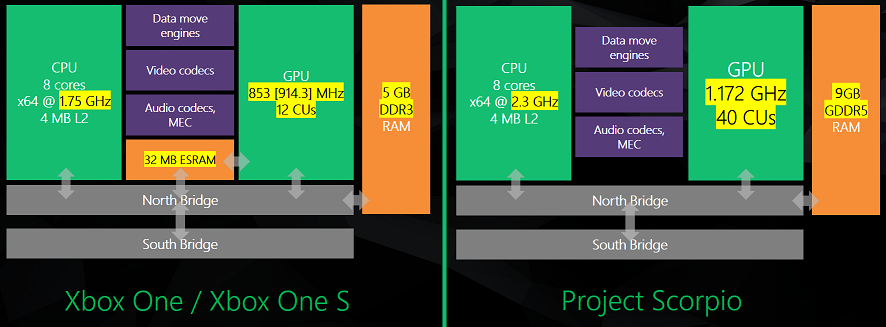

Comparison with the Xbox One and Xbox One S

Compared to Xbox One and Xbox One S, Xbox One X consoles have a significantly faster CPU, a significantly faster and more powerful GPU, 3 to 4 GB more title addressable memory, no ESRAM, and a faster hard drive.

For an overview of the hardware specs for the Xbox One X dev kit, see Introducing the Xbox One X Dev Kit.
