D3D_PRIMITIVE_TOPOLOGY Enumeration
Values that indicate how the pipeline interprets vertex data that is bound to the input-assembler stage. These primitive topology values determine how the vertex data is rendered on screen.
Syntax
typedef enum D3D_PRIMITIVE_TOPOLOGY
{
D3D_PRIMITIVE_TOPOLOGY_UNDEFINED = 0,
D3D_PRIMITIVE_TOPOLOGY_POINTLIST = 1,
D3D_PRIMITIVE_TOPOLOGY_LINELIST = 2,
D3D_PRIMITIVE_TOPOLOGY_LINESTRIP = 3,
D3D_PRIMITIVE_TOPOLOGY_TRIANGLELIST = 4,
D3D_PRIMITIVE_TOPOLOGY_TRIANGLESTRIP = 5,
D3D_PRIMITIVE_TOPOLOGY_TRIANGLEFAN = 6,
D3D_PRIMITIVE_TOPOLOGY_LINELIST_ADJ = 10,
D3D_PRIMITIVE_TOPOLOGY_LINESTRIP_ADJ = 11,
D3D_PRIMITIVE_TOPOLOGY_TRIANGLELIST_ADJ = 12,
D3D_PRIMITIVE_TOPOLOGY_TRIANGLESTRIP_ADJ = 13,
D3D_PRIMITIVE_TOPOLOGY_RECTLIST = 17,
D3D_PRIMITIVE_TOPOLOGY_LINELOOP = 18,
D3D_PRIMITIVE_TOPOLOGY_QUADLIST = 19,
D3D_PRIMITIVE_TOPOLOGY_QUADSTRIP = 20,
D3D_PRIMITIVE_TOPOLOGY_1_CONTROL_POINT_PATCHLIST = 33,
D3D_PRIMITIVE_TOPOLOGY_2_CONTROL_POINT_PATCHLIST = 34,
D3D_PRIMITIVE_TOPOLOGY_3_CONTROL_POINT_PATCHLIST = 35,
D3D_PRIMITIVE_TOPOLOGY_4_CONTROL_POINT_PATCHLIST = 36,
D3D_PRIMITIVE_TOPOLOGY_5_CONTROL_POINT_PATCHLIST = 37,
D3D_PRIMITIVE_TOPOLOGY_6_CONTROL_POINT_PATCHLIST = 38,
D3D_PRIMITIVE_TOPOLOGY_7_CONTROL_POINT_PATCHLIST = 39,
D3D_PRIMITIVE_TOPOLOGY_8_CONTROL_POINT_PATCHLIST = 40,
D3D_PRIMITIVE_TOPOLOGY_9_CONTROL_POINT_PATCHLIST = 41,
D3D_PRIMITIVE_TOPOLOGY_10_CONTROL_POINT_PATCHLIST = 42,
D3D_PRIMITIVE_TOPOLOGY_11_CONTROL_POINT_PATCHLIST = 43,
D3D_PRIMITIVE_TOPOLOGY_12_CONTROL_POINT_PATCHLIST = 44,
D3D_PRIMITIVE_TOPOLOGY_13_CONTROL_POINT_PATCHLIST = 45,
D3D_PRIMITIVE_TOPOLOGY_14_CONTROL_POINT_PATCHLIST = 46,
D3D_PRIMITIVE_TOPOLOGY_15_CONTROL_POINT_PATCHLIST = 47,
D3D_PRIMITIVE_TOPOLOGY_16_CONTROL_POINT_PATCHLIST = 48,
D3D_PRIMITIVE_TOPOLOGY_17_CONTROL_POINT_PATCHLIST = 49,
D3D_PRIMITIVE_TOPOLOGY_18_CONTROL_POINT_PATCHLIST = 50,
D3D_PRIMITIVE_TOPOLOGY_19_CONTROL_POINT_PATCHLIST = 51,
D3D_PRIMITIVE_TOPOLOGY_20_CONTROL_POINT_PATCHLIST = 52,
D3D_PRIMITIVE_TOPOLOGY_21_CONTROL_POINT_PATCHLIST = 53,
D3D_PRIMITIVE_TOPOLOGY_22_CONTROL_POINT_PATCHLIST = 54,
D3D_PRIMITIVE_TOPOLOGY_23_CONTROL_POINT_PATCHLIST = 55,
D3D_PRIMITIVE_TOPOLOGY_24_CONTROL_POINT_PATCHLIST = 56,
D3D_PRIMITIVE_TOPOLOGY_25_CONTROL_POINT_PATCHLIST = 57,
D3D_PRIMITIVE_TOPOLOGY_26_CONTROL_POINT_PATCHLIST = 58,
D3D_PRIMITIVE_TOPOLOGY_27_CONTROL_POINT_PATCHLIST = 59,
D3D_PRIMITIVE_TOPOLOGY_28_CONTROL_POINT_PATCHLIST = 60,
D3D_PRIMITIVE_TOPOLOGY_29_CONTROL_POINT_PATCHLIST = 61,
D3D_PRIMITIVE_TOPOLOGY_30_CONTROL_POINT_PATCHLIST = 62,
D3D_PRIMITIVE_TOPOLOGY_31_CONTROL_POINT_PATCHLIST = 63,
D3D_PRIMITIVE_TOPOLOGY_32_CONTROL_POINT_PATCHLIST = 64,
D3D10_PRIMITIVE_TOPOLOGY_UNDEFINED = D3D_PRIMITIVE_TOPOLOGY_UNDEFINED,
D3D10_PRIMITIVE_TOPOLOGY_POINTLIST = D3D_PRIMITIVE_TOPOLOGY_POINTLIST,
D3D10_PRIMITIVE_TOPOLOGY_LINELIST = D3D_PRIMITIVE_TOPOLOGY_LINELIST,
D3D10_PRIMITIVE_TOPOLOGY_LINESTRIP = D3D_PRIMITIVE_TOPOLOGY_LINESTRIP,
D3D10_PRIMITIVE_TOPOLOGY_TRIANGLELIST = D3D_PRIMITIVE_TOPOLOGY_TRIANGLELIST,
D3D10_PRIMITIVE_TOPOLOGY_TRIANGLESTRIP = D3D_PRIMITIVE_TOPOLOGY_TRIANGLESTRIP,
D3D11_PRIMITIVE_TOPOLOGY_TRIANGLEFAN = D3D_PRIMITIVE_TOPOLOGY_TRIANGLEFAN,
D3D10_PRIMITIVE_TOPOLOGY_LINELIST_ADJ = D3D_PRIMITIVE_TOPOLOGY_LINELIST_ADJ,
D3D10_PRIMITIVE_TOPOLOGY_LINESTRIP_ADJ = D3D_PRIMITIVE_TOPOLOGY_LINESTRIP_ADJ,
D3D10_PRIMITIVE_TOPOLOGY_TRIANGLELIST_ADJ = D3D_PRIMITIVE_TOPOLOGY_TRIANGLELIST_ADJ,
D3D10_PRIMITIVE_TOPOLOGY_TRIANGLESTRIP_ADJ = D3D_PRIMITIVE_TOPOLOGY_TRIANGLESTRIP_ADJ,
D3D11_PRIMITIVE_TOPOLOGY_RECTLIST = D3D_PRIMITIVE_TOPOLOGY_RECTLIST,
D3D11_PRIMITIVE_TOPOLOGY_LINELOOP = D3D_PRIMITIVE_TOPOLOGY_LINELOOP,
D3D11_PRIMITIVE_TOPOLOGY_QUADLIST = D3D_PRIMITIVE_TOPOLOGY_QUADLIST,
D3D11_PRIMITIVE_TOPOLOGY_QUADSTRIP = D3D_PRIMITIVE_TOPOLOGY_QUADSTRIP,
D3D11_PRIMITIVE_TOPOLOGY_UNDEFINED = D3D_PRIMITIVE_TOPOLOGY_UNDEFINED,
D3D11_PRIMITIVE_TOPOLOGY_POINTLIST = D3D_PRIMITIVE_TOPOLOGY_POINTLIST,
D3D11_PRIMITIVE_TOPOLOGY_LINELIST = D3D_PRIMITIVE_TOPOLOGY_LINELIST,
D3D11_PRIMITIVE_TOPOLOGY_LINESTRIP = D3D_PRIMITIVE_TOPOLOGY_LINESTRIP,
D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST = D3D_PRIMITIVE_TOPOLOGY_TRIANGLELIST,
D3D11_PRIMITIVE_TOPOLOGY_TRIANGLESTRIP = D3D_PRIMITIVE_TOPOLOGY_TRIANGLESTRIP,
D3D11_PRIMITIVE_TOPOLOGY_LINELIST_ADJ = D3D_PRIMITIVE_TOPOLOGY_LINELIST_ADJ,
D3D11_PRIMITIVE_TOPOLOGY_LINESTRIP_ADJ = D3D_PRIMITIVE_TOPOLOGY_LINESTRIP_ADJ,
D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST_ADJ = D3D_PRIMITIVE_TOPOLOGY_TRIANGLELIST_ADJ,
D3D11_PRIMITIVE_TOPOLOGY_TRIANGLESTRIP_ADJ = D3D_PRIMITIVE_TOPOLOGY_TRIANGLESTRIP_ADJ,
D3D11_PRIMITIVE_TOPOLOGY_1_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_1_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_2_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_2_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_3_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_3_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_4_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_4_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_5_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_5_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_6_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_6_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_7_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_7_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_8_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_8_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_9_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_9_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_10_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_10_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_11_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_11_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_12_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_12_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_13_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_13_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_14_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_14_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_15_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_15_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_16_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_16_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_17_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_17_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_18_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_18_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_19_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_19_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_20_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_20_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_21_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_21_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_22_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_22_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_23_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_23_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_24_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_24_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_25_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_25_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_26_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_26_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_27_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_27_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_28_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_28_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_29_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_29_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_30_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_30_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_31_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_31_CONTROL_POINT_PATCHLIST,
D3D11_PRIMITIVE_TOPOLOGY_32_CONTROL_POINT_PATCHLIST = D3D_PRIMITIVE_TOPOLOGY_32_CONTROL_POINT_PATCHLIST
} D3D_PRIMITIVE_TOPOLOGY;
Constants
| Constant | Description |
|---|---|
| D3D_PRIMITIVE_TOPOLOGY_UNDEFINED | The IA stage has not been initialized with a primitive topology. The IA stage will not function properly unless a primitive topology is defined. |
| D3D_PRIMITIVE_TOPOLOGY_POINTLIST | Interpret the vertex data as a list of points. |
| D3D_PRIMITIVE_TOPOLOGY_LINELIST | Interpret the vertex data as a list of lines. |
| D3D_PRIMITIVE_TOPOLOGY_LINESTRIP | Interpret the vertex data as a line strip. |
| D3D_PRIMITIVE_TOPOLOGY_TRIANGLELIST | Interpret the vertex data as a list of triangles. |
| D3D_PRIMITIVE_TOPOLOGY_TRIANGLESTRIP | Interpret the vertex data as a triangle strip. |
| D3D_PRIMITIVE_TOPOLOGY_TRIANGLEFAN | Interpret the vertex data as a triangle fan. This enumeration constant is an Xbox extension. |
| D3D_PRIMITIVE_TOPOLOGY_LINELIST_ADJ | Interpret the vertex data as a list of lines with adjacency data. |
| D3D_PRIMITIVE_TOPOLOGY_LINESTRIP_ADJ | Interpret the vertex data as a line strip with adjacency data. |
| D3D_PRIMITIVE_TOPOLOGY_TRIANGLELIST_ADJ | Interpret the vertex data as a list of triangles with adjacency data. |
| D3D_PRIMITIVE_TOPOLOGY_TRIANGLESTRIP_ADJ | Interpret the vertex data as a triangle strip with adjacency data. |
| D3D_PRIMITIVE_TOPOLOGY_RECTLIST | Interpret the vertex data as a list of rectangles. This enumeration constant is an Xbox extension. |
| D3D_PRIMITIVE_TOPOLOGY_LINELOOP | Interpret the vertex data as a loop of lines. This enumeration constant is an Xbox extension. |
| D3D_PRIMITIVE_TOPOLOGY_QUADLIST | Interpret the vertex data as a list of quadrangles. This enumeration constant is an Xbox extension. |
| D3D_PRIMITIVE_TOPOLOGY_QUADSTRIP | Interpret the vertex data as a strip of quadrangles. This enumeration constant is an Xbox extension. |
| D3D_PRIMITIVE_TOPOLOGY_1_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_2_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_3_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_4_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_5_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_6_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_7_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_8_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_9_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_10_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_11_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_12_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_13_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_14_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_15_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_16_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_17_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_18_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_19_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_20_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_21_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_22_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_23_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_24_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_25_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_26_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_27_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_28_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_29_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_30_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_31_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D_PRIMITIVE_TOPOLOGY_32_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D10_PRIMITIVE_TOPOLOGY_UNDEFINED | The IA stage has not been initialized with a primitive topology. The IA stage will not function properly unless a primitive topology is defined. |
| D3D10_PRIMITIVE_TOPOLOGY_POINTLIST | Interpret the vertex data as a list of points. |
| D3D10_PRIMITIVE_TOPOLOGY_LINELIST | Interpret the vertex data as a list of lines. |
| D3D10_PRIMITIVE_TOPOLOGY_LINESTRIP | Interpret the vertex data as a line strip. |
| D3D10_PRIMITIVE_TOPOLOGY_TRIANGLELIST | Interpret the vertex data as a list of triangles. |
| D3D10_PRIMITIVE_TOPOLOGY_TRIANGLESTRIP | Interpret the vertex data as a triangle strip. |
| D3D11_PRIMITIVE_TOPOLOGY_TRIANGLEFAN | Interpret the vertex data as a fan of triangles. This enumeration constant is an Xbox extension. |
| D3D10_PRIMITIVE_TOPOLOGY_LINELIST_ADJ | Interpret the vertex data as a list of lines with adjacency data. |
| D3D10_PRIMITIVE_TOPOLOGY_LINESTRIP_ADJ | Interpret the vertex data as a line strip with adjacency data. |
| D3D10_PRIMITIVE_TOPOLOGY_TRIANGLELIST_ADJ | Interpret the vertex data as a list of triangles with adjacency data. |
| D3D10_PRIMITIVE_TOPOLOGY_TRIANGLESTRIP_ADJ | Interpret the vertex data as a triangle strip with adjacency data. |
| D3D11_PRIMITIVE_TOPOLOGY_RECTLIST | Interpret the vertex data as a list of rectangles. This enumeration constant is an Xbox extension. |
| D3D11_PRIMITIVE_TOPOLOGY_LINELOOP | Interpret the vertex data as a loop of lines. This enumeration constant is an Xbox extension. |
| D3D11_PRIMITIVE_TOPOLOGY_QUADLIST | Interpret the vertex data as a list of quadrangles. This enumeration constant is an Xbox extension. |
| D3D11_PRIMITIVE_TOPOLOGY_QUADSTRIP | Interpret the vertex data as a strip of quadrangles. This enumeration constant is an Xbox extension. |
| D3D11_PRIMITIVE_TOPOLOGY_UNDEFINED | The IA stage has not been initialized with a primitive topology. The IA stage will not function properly unless a primitive topology is defined. |
| D3D11_PRIMITIVE_TOPOLOGY_POINTLIST | Interpret the vertex data as a list of points. |
| D3D11_PRIMITIVE_TOPOLOGY_LINELIST | Interpret the vertex data as a list of lines. |
| D3D11_PRIMITIVE_TOPOLOGY_LINESTRIP | Interpret the vertex data as a line strip. |
| D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST | Interpret the vertex data as a list of triangles. |
| D3D11_PRIMITIVE_TOPOLOGY_TRIANGLESTRIP | Interpret the vertex data as a triangle strip. |
| D3D11_PRIMITIVE_TOPOLOGY_LINELIST_ADJ | Interpret the vertex data as a list of lines with adjacency data. |
| D3D11_PRIMITIVE_TOPOLOGY_LINESTRIP_ADJ | Interpret the vertex data as a line strip with adjacency data. |
| D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST_ADJ | Interpret the vertex data as a list of triangles with adjacency data. |
| D3D11_PRIMITIVE_TOPOLOGY_TRIANGLESTRIP_ADJ | Interpret the vertex data as a triangle strip with adjacency data. |
| D3D11_PRIMITIVE_TOPOLOGY_1_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_2_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_3_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_4_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_5_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_6_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_7_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_8_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_9_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_10_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_11_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_12_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_13_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_14_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_15_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_16_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_17_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_18_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_19_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_20_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_21_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_22_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_23_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_24_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_25_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_26_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_27_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_28_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_29_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_30_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_31_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
| D3D11_PRIMITIVE_TOPOLOGY_32_CONTROL_POINT_PATCHLIST | Interpret the vertex data as a patch list. |
Remarks
Use the ID3D11DeviceContext::IASetPrimitiveTopology method and a value from D3D_PRIMITIVE_TOPOLOGY to bind a primitive topology to the input-assembler stage. Use the ID3D11DeviceContext::IAGetPrimitiveTopology method to retrieve the primitive topology for the input-assembler stage.

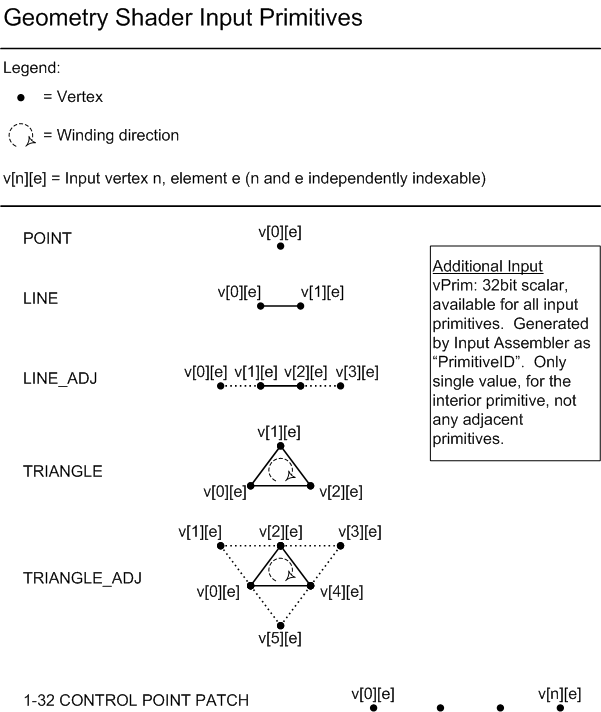

The following diagram shows the various primitive types for a geometry shader object.
Figure 1. Illustration of the various primitive types for a geometry shader object
Requirements
Header: Declared in d3d11_x.h (d3dcommon.h on other Windows platforms).
